Introducing RB-Watcher XL
The RB-Watcher Robot - On Steroids!
The new RB-WATCHER XL autonomous robot, an enhanced version of the RB-Watcher platform, offers the same mission-critical capabilities as the original. Equipped with advanced sensors, it enables thermal inspections, intelligent visual recognition, people or vehicle detection or autonomous patrolling ensuring intelligent, reliable and continuous security for greater operational efficiency. This new version, however, incorporates a host of features that make it ideal for deployment in tough outdoor environments.
Autonomous Patrolling
The robot performs 100% autonomous movement and routine patrolling of pre-defined areas utilizing an integrated combination of 3D LiDAR and GPS.
Smart AI Detection
The software automatically identifies critical security threats, including unauthorized people, vehicles, damaged fences, and thermal anomalies.
Real-Time Monitoring
Live camera and sensor data are continuously monitored. When a risk is identified, real-time alarms are instantly transmitted through multiple communication channels.
Privacy Compliance
For strict data protection requirements, the software includes an optional feature to transmit video streams with blurred faces, protecting the identities of those observed.
Secure Teleoperation
Operators can securely override autonomous paths to teleoperate the robot, with connectivity protected under 4G/5G networks, active VPN tunnels & HTTPS encryption.
UI & Onboard Storage
Using a browser-based interface, your team can easily create maps from scratch, define points of interest, schedule missions, and save all data gathered during patrols.
Meet RB-Watcher
Specifications

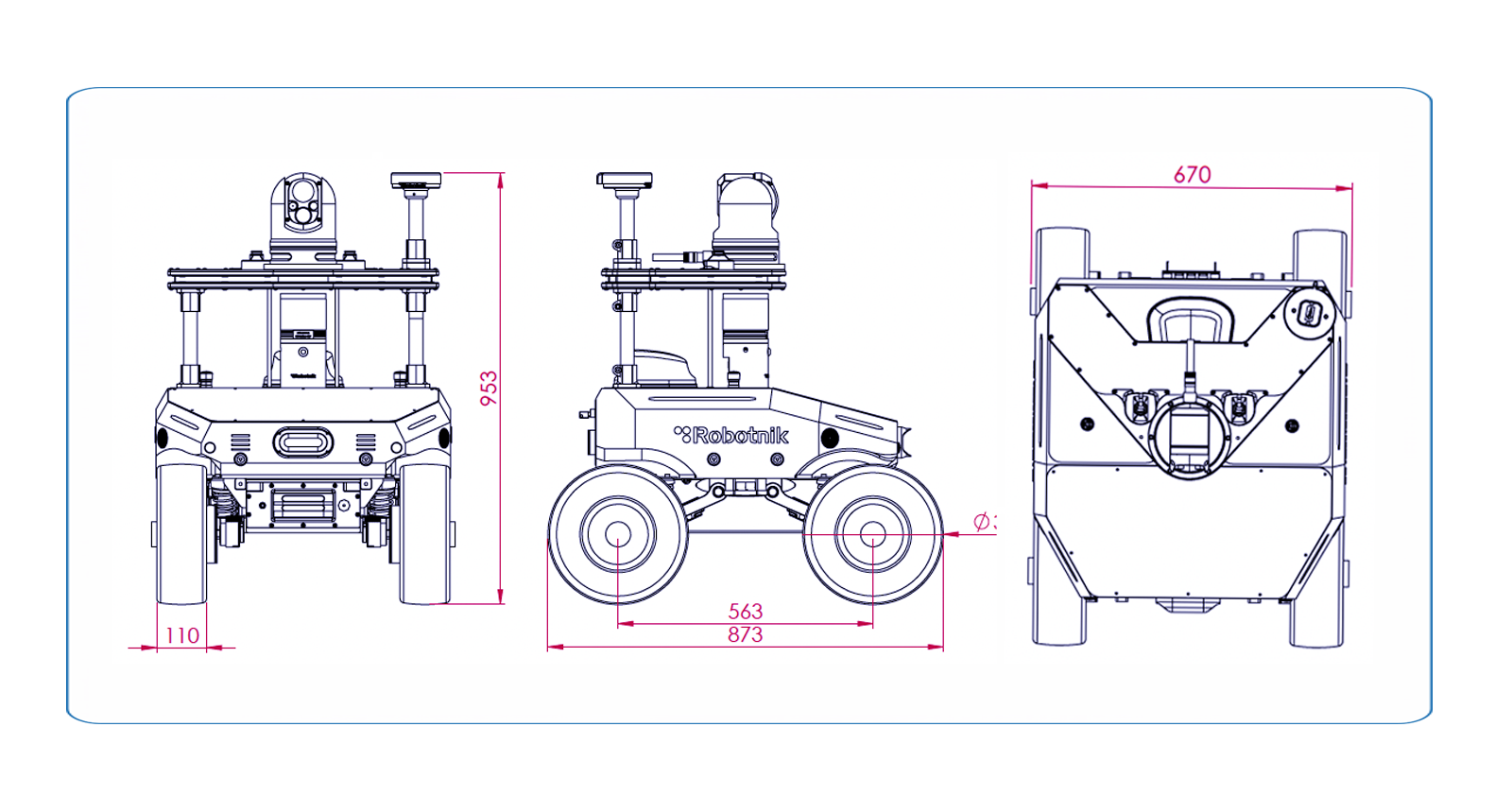

- Dimensions (mm) 873 x 670 x 953
- Weight (kg) 75
- Payload (kg) 40
- Speed (m/s) 1,5
- Environment Indoor / Outdoor
- Enclosure class IP55
- Autonomy (h) 10
- Traction motors (W) 4 x 800 with brake
- Traction systems Skid steering
- Localization system 3D SLAM + GPS
- Temperature range (ºC) -10º to +45º
- Max. Slope (%) 50
- Controller Ubuntu 20.04
- WiFi WiFi 802.11 b/g/n/ac
- Bluethooth 4.0
- Connectivity USB, Ethernet
- Power outputs 5V, 12V, VBATT
Components
- 5G Router
- GPS
- RGBD Camera
- LIDAR 3D
- Beacon 360 LED Lighting
- Microphone IP65
- Speakers IP65
- Bi-spectral Pan-Tilt-Zoom
- Inspection Software Packages
- Battery UN38.3 - 48VDC@29Ah
- Charging station
